5000MT Hydraulic Aluminium Profile Extrusion Press Machine

Aluminum extruder machine
Aluminium Profile Extrusion Press Machine
Extrusion Press Machine
Aluminum Extrusion equipment

5000MT Hydraulic Aluminium Profile Extrusion Press Machine

This Hydraulic Aluminum Extrusion Machine integrates state-of-the-art extrusion technology from both domestic and international sources. It features a well-engineered structure and an aesthetically pleasing design. The Aluminum Extrusion machine boasts a high level of automation and rapid operation. It allows for seamless switching between automatic and manual modes. Key features include an independent mold locking mechanism, a protection device for missing cake extrusion, a constant speed function, and a prestressed frame structure. The Aluminum Extruder machine delivers reliable performance, exceptional production efficiency, and low energy consumption.

  • Item NO :

    5000T Aluminum Extrusion machine
  • Payment :

    TT
  • Brand :

    Huanan
  • Color :

    customizable
  • Shipping Port :

    Guangzhou
  • Produce time :

    6 to 10months
  • Product Details

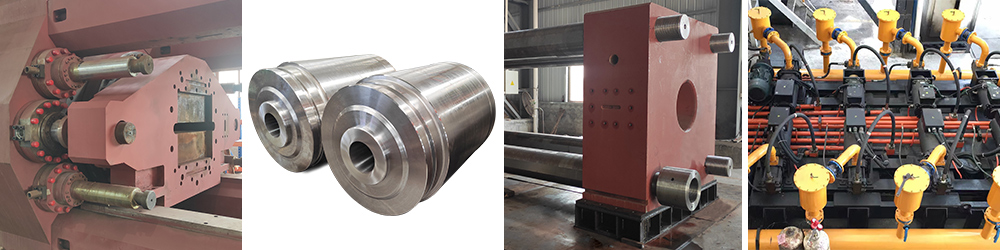

Material and specifications of main parts

Item

Specification & Materials details

Master cylinder:

35# forged steel

Piston:

Φ750mm alloy chilled cast iron

Auxiliary cylinder:

Φ160mm  2 pieces

Container cylinder:

Φ160mm  4 pieces

Front beam:

485 mm thick+15mm(table),500mm tick,  material: 45# steel

Outlet:

short axis 170mm x long axis 210mm

Slider base:

thick 260mm 45# steel

Movable beam:

thick 270mm 45# steel

Tie rods:

Φ210mm 45# steel quenched and tempered

Insulation seat:

ZG35

Container outside cover:

5CrMnMo forged steel heat treatment

Container liner:

H13 Forged Steel Heat Treatment

Stem :

H13 Forged Steel Heat Treatment

Dummy block:

H13 forged steel heat treatment



Advantages of short-stroke back loading structure

1. The short-stroke extruder features a significantly shorter extrusion stroke compared to conventional extruders, reducing the frame opening and thereby increasing the rigidity of the stress frame by 30% over traditional models.

2. The volume of the main side cylinder is decreased, leading to reduced hydraulic oil consumption. This enhances the accuracy of speed and pressure control, shortens the time needed for pressure build-up and release, cuts energy consumption, and minimizes the impact of oil during pressure relief.

3.Eliminating the gasket circulation system decreases reactive operation time and lowers the power consumption of the production line, resulting in a 15% reduction in non-extrusion time.

4.The implementation of a servo motor-driven translation manipulator further reduces non-extrusion time by 15%.

Extrusion Press Machine



Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Our hydraulic aluminum extrusion machine is versatile and can be utilized across various industries. Aluminum profiles produced by this machine are ideal for applications in roofs, walls, doors, windows, frames, lattice shell structures, grid structures, glass curtain wall support systems, awnings, and pedestrian bridges. They are also used in both interior and exterior decorative panels, partitions, ceilings, suspended ceilings, railings, and handrails, as well as for decorative purposes in industrial and residential buildings. Additionally, aluminum profiles are extensively used for constructing materials and structural components, store containers, and formwork, delivering excellent performance and results.

Aluminium Profile Extrusion Machine



Technical Characteristics and Specification

The critical components of the hydraulic aluminum extrusion machine, such as the container, extrusion pad, shear blade, and ingot feeder, feature well-established designs and exhibit a low failure rate.



The Aluminum Extrusion machine operates with minimal impact and vibration, significantly reducing the risk of oil leakage.



It offers rapid responsiveness, high efficiency, and a reduced non-extrusion period.



The Aluminum extruder machine ensures high precision, with extrusion speeds that can be accurately controlled to within ±0.1mm.



Featuring advanced automation and intelligent production capabilities, the Aluminum extrusion equipment reduces the demands on both operators and maintenance personnel.



Technical Date

5000MT Technical Parameters
1.Standard Billet Size:
Outer diameter:

Φ330mm

Length:

600~1400mm

2.Extrusion capacity :



Machine extrusion force:

50.7MN

3.Die Size:



Diameter:

Φ650mm

Depth:

H750mm

4.Equipment dimension



Mechanical size:



Overall weight:



Total Power:

1105KW

5.Motor



Main oil pump: (Hilectro brand)

HP130U2-G120W-R1P4(160KW)*6

Liquid cooling driver

Hi200-180KW*6



Shipment Pictures

Hydraulic Aluminum Extrusion Press Machine



Workshop show

Hydraulic Aluminum Extrusion Press Machine



FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please tell to us what kind of products you make ?Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.

Q3. Will Huanan provide installation service?
When the aluminum extrusion machine arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan offers comprehensive one-stop services, including pre-sales, sales, and after-sales support:

  • Technical consultation and assistance
  • Developing tailored production proposals to meet customer requirements
  • Services encompassing design, manufacturing, inspection, uploading, shipping, and provision of all original documents
  • Installation, technology training and support, and lifetime maintenance
