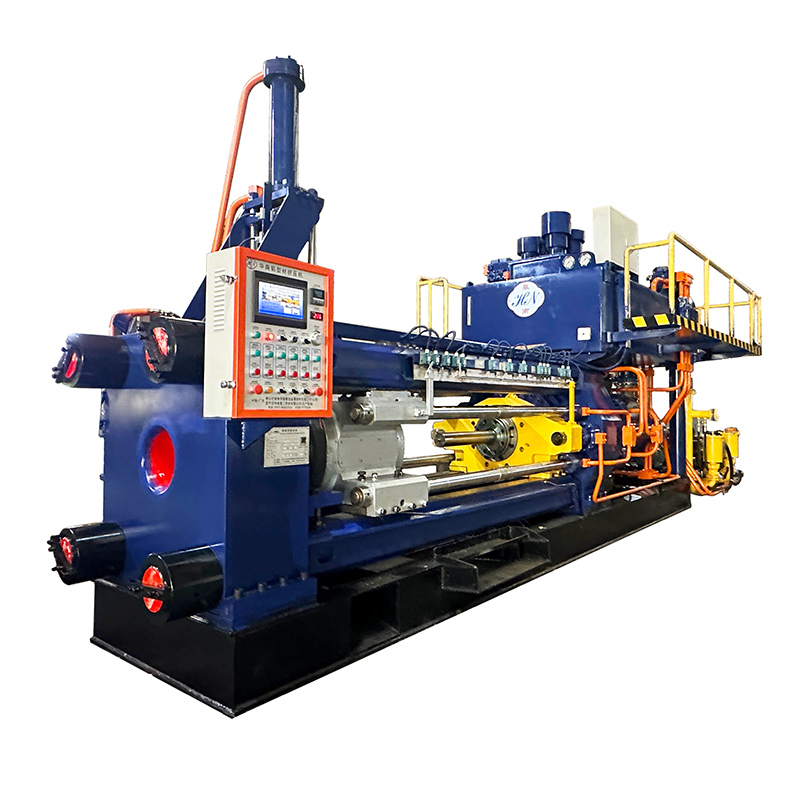

2200MT High Efficient Hydraulic Aluminium Profile Extrusion Press Machine

This Aluminum extruder product integrates advanced extrusion technology from both domestic and international sources. Its overall structure is well-designed and aesthetically pleasing, featuring a high degree of automation and rapid operation. It offers easy switching between automatic and manual modes, and includes an independent mold locking mechanism, a missing cake extrusion protection device, a constant speed function, and a prestressed frame structure. With reliable performance, high production efficiency, and low energy consumption, this product is highly efficient.

  • Item NO :

    2200T Aluminum Extrusion machine
  • Payment :

    TT
  • Brand :

    Huanan
  • Color :

    customizable
  • Shipping Port :

    Guangzhou
  • Produce time :

    4 to 6 months
  • Weight :

    185T
  • Dimension :

    L10500mm×W7800mm×H5200mm
  • Product Details

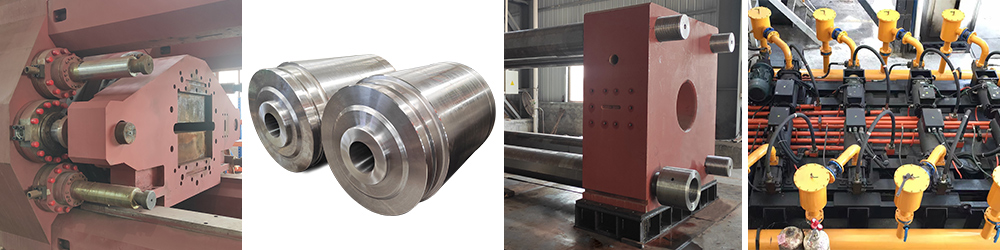

Material and specifications of main parts



Item

Specification & Materials details

Master cylinder:

35# forged steel

Piston:

Φ750mm alloy chilled cast iron

Auxiliary cylinder:

Φ160mm  2 pieces

Container cylinder:

Φ160mm  4 pieces

Front beam:

485 mm thick+15mm(table),500mm tick,  material: 45# steel

Outlet:

short axis 170mm x long axis 210mm

Slider base:

thick 260mm 45# steel

Movable beam:

thick 270mm 45# steel

Tie rods:

Φ210mm 45# steel quenched and tempered

Insulation seat:

ZG35



Container outside cover:

5CrMnMo forged steel heat treatment

Container liner:

H13 Forged Steel Heat Treatment

Stem :

H13 Forged Steel Heat Treatment

Dummy block:

H13 forged steel heat treatment



Advantages of short-stroke back loading structure

1. The short-stroke extruder features a shorter extrusion stroke compared to conventional Aluminum extruders. This reduction in frame opening enhances the rigidity of the stress frame, making it 30% more rigid than traditional extruders.

2. By decreasing the volume of the main side cylinder, the consumption of hydraulic oil is reduced, leading to improved accuracy in speed and pressure control. This modification shortens the pressure build-up and release times, lowers energy consumption, and minimizes the impact of oil during pressure relief.

3.Eliminating the gasket circulation system reduces the need for reactive operations and lowers the production line's power consumption. Additionally, non-extrusion time is decreased by 15%.

4.Our Aluminum extrusion machine use of a translation manipulator driven by a servo motor further reduces non-extrusion time by 15%.

Aluminum extruder machine



Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Aluminum profiles are extensively utilized in various applications such as roofs, walls, doors, windows, frames, lattice shell structures, grid structures, glass curtain wall support systems, awnings, pedestrian bridges, and both interior and exterior decorative panels. They are also employed in partitions, ceilings, suspended ceilings, railings, handrails, and as decorative elements in industrial and residential buildings. Additionally, aluminum profiles are widely used in constructing store containers, formwork, and other structural components, delivering excellent performance and results.



Aluminum Extrusion equipment price



Technical Characteristics and Specification

1. The critical components of the equipment, such as the container, extrusion pad, shear blade, and ingot feeder, feature well-established designs with low failure rates.

2. The equipment experiences minimal impact and vibration, significantly reducing the likelihood of oil leakage.

3. It offers a rapid response time, high efficiency, and minimized non-extrusion periods.

4. The equipment boasts high precision, with extrusion speeds that can be accurately controlled to within ±0.1mm.

5. With a high level of automation and intelligent production capabilities, the equipment reduces the demands on operators and maintenance staff.

Technical Date

2200MT/2420UST Technical Parameters
1.Standard Billet Size:
Outer diameter:

Φ203mm

Length:

400-1100mm

Main Piston:

Φ920mm

2.Extrusion capacity :



Machine extrusion force:

25Mpa  2208T

3.Dimensions of mold base cavity:



Diameter:

Φ480mm

Depth:

H480mm

4.Equipment dimension



Mechanical size:

L10500mm x W7800mm x H5200mm

Overall weight:

185T

Total Power:

524KW

5.Motor



Main oil pump: (Hilectro brand)

HP12981-G102W-R1P4 *4

Liquid cooling driver

Hi300-132KW *4

6.Hydraulic pump



Main oil pump: (Germany Rexroth)

A15VSO-210 31.5MPa variable pumps

Auxiliary pump:(Tokyo Keiki)

SQP43-60-38+A2F28

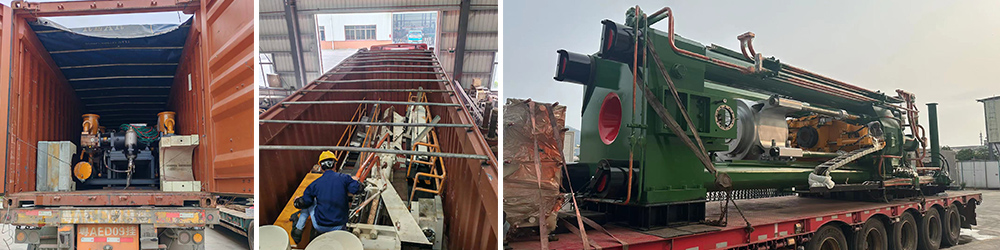

Shipment Pictures

Aluminum Extrusion equipment

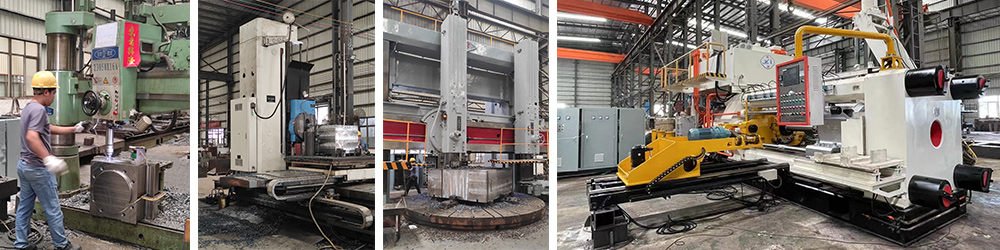

Workshop show

Aluminium Profile Extrusion Press Machine



FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please tell to us what kind of products you make ?Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.

Q3. Will Huanan provide installation service?
When the equipment arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan will do professional One-station services

(pre-sales, in-sales, after-sales service system):

Technical consultation and support;

Making a complete production proposal based on customer’s needs;

Design/manufacturing/inspection/uploading/shipping/all original documents services

Installation/technology training and support/maintenance in a life time
