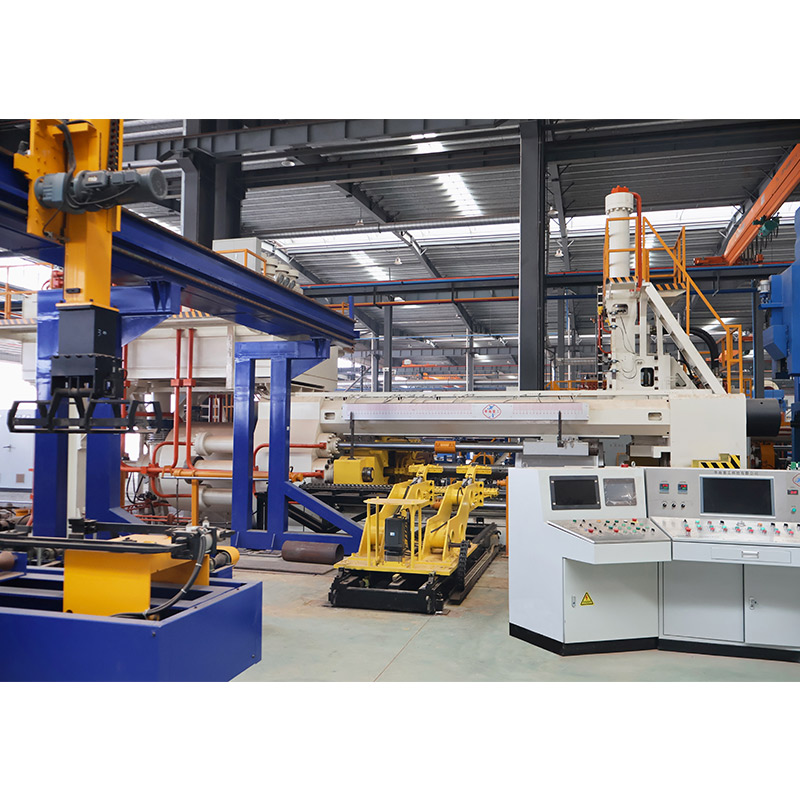

3400T Hydraulic Pressure Aluminum Profile Extrusion Machine

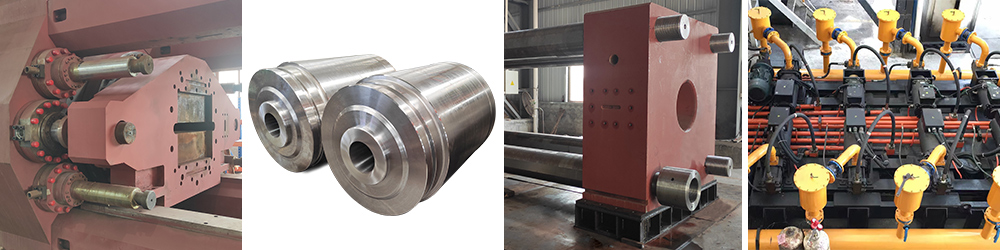

Material and specifications of main parts

Advantages of short-stroke back loading structure

1. The short-stroke extruder has a reduced extrusion stroke compared to conventional extruders. This smaller frame opening enhances the rigidity of the stress frame, making it 30% more rigid than traditional extruders.

2. The volume of the main side cylinder is decreased, lowering hydraulic oil consumption. This improvement enhances speed and pressure control accuracy, shortens the time needed to increase and release pressure, reduces energy consumption, and minimizes the impact of oil during pressure relief.

3.Eliminating the gasket circulation system reduces reactive operation time and lowers the power consumption of the production line. This results in a 15% reduction in non-extrusion time.

4.Utilizing a translation manipulator driven by a servo motor further decreases non-extrusion time by 15%.

Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Aluminum profiles are extensively utilized in a variety of applications, including roofs, walls, doors, windows, frames, lattice shell structures, grid structures, glass curtain wall support systems, awnings, pedestrian bridges, and both interior and exterior decorative panels. They are also used in partitions, ceilings, suspended ceilings, railings, handrails, and other decorative elements in both industrial and residential buildings. Additionally, aluminum profiles are widely employed in the construction of store containers, formwork, and other structural components, delivering excellent performance and results.

Technical Characteristics and Specification

1. The essential components of the equipment, including the container, extrusion pad, shear blade, and ingot feeder, feature well-developed designs and have a low failure rate.

2. The Aluminum extrusion equipment generates minimal impact and vibration, significantly reducing the risk of oil leakage.

3. It offers quick responsiveness, high efficiency, and a short non-extrusion period.

4. The Aluminum extruder boasts high precision, with extrusion speeds controllable to an accuracy of ±0.1mm.

5. With advanced automation and intelligent production capabilities, the Aluminum extrusion equipment lowers the demands on operators and maintenance personnel.

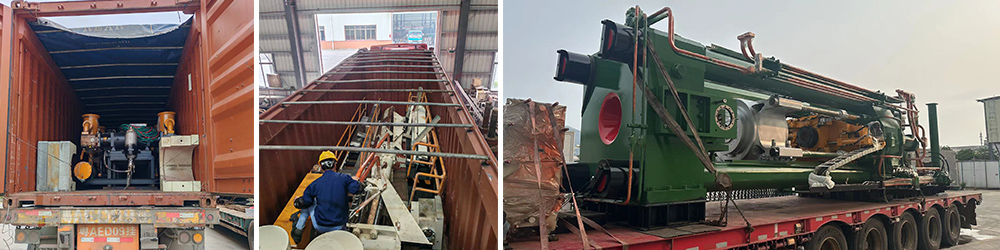

Shipment Pictures

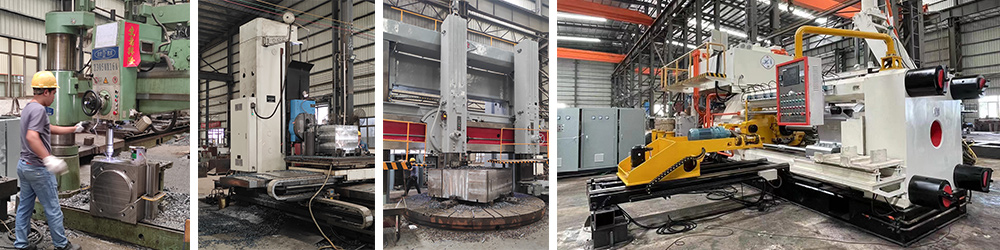

Workshop show

FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please tell to us what kind of products you make ？Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.

Q3. Will Huanan provide installation service?
When the equipment arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan will do professional One-station services

(pre-sales, in-sales, after-sales service system):

Technical consultation and support;

Making a complete production proposal based on customer’s needs;

Design/manufacturing/inspection/uploading/shipping/all original documents services

Installation/technology training and support/maintenance in a life time
